1 in 8 Out HDMI Splitter Box

1 IN 8 OUT HDMI SPLITTER BOX - 1IN8OUTHDMI

The 1x8 HDMI Splitter Uses a Single HDMI Source, Accessing to Multiple HDMI

Sinks. The Splitter Allows one HDMI Devices to be Split Easily to Eight HDMI

Compatible Monitors or Projectors. The Splitter Can also be Placed at the End of

A Long HDMI Cable to Regenerate the HDMI Signal. The HDMI Resolution up to 3840x2160/30HZ.

FETURES:

Support HDMI 1.4a

Support 3D

Support HDMI Resolution up to 3840x2160/30Hz

Support the Max Band Rate of 2.25G and Max Bandwidth of 225Mhz

Support Deep Color 8/10/12bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Support Input up to 15 Metres AWG26 HDMI Standard Cable Length,

Output up to 25 Metres AWG26 HDMI Standard Cable Length

Displaying Single Source, Multi-Output High-Definition Signal Source

From DVD Player, A / V Receiver, Set-top box

5V/1.5A Power Adapter

SPECIFICATIONS:

HDMI Version: HDMI 1.4a

HDMI Resolution: 3840x2160/30Hz

Support Video Color Format: 8/10/12bit Deep Color

Support Audio Format: DTS-HD/Dolby-trueHD /DTS/Dolby-AC3/DSD

Max Bandwidth: 225MHz

Max Baud Rate: 2.25Gbps

Input Cable Distance: 15m AWG26 HDMI Standard Cable

Output Cable Distance: 25m AWG26 HDMI Standard Cable

HDMI Input: 1 HDMI

HDMI Output:8 HDMI

Max Working Current: 1500mA

Power Adapter Format: Input:AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A

Operating Temperature Range: (-15 to +55°C)

Operating Humidity Range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 278x110x25 (mm)

Weight: 640g

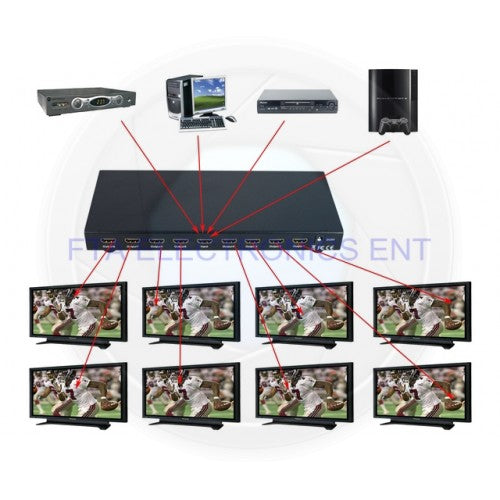

Connecting Operation:

Connect 1 HDMI Cable from HDMI Source Devices into HDMI Splitter Input.

Connect 8 HDMI Cables from Displayers (Monitors or Projectors) into the HDMI

Splitter Outputs.

Connect 5V/2A Power Supply to the HDMI 1x8 Splitter.

Key operation: Reset Button for System Reset.

Package Accessories:

HDMI Splitter 1x8 4K x 2K

Power Adapter

User Manual
