1 in 4 Out HDMI 4K Splitter Box
1 IN 4 OUT HDMI 4K SPLITTER BOX It Allows one HDMI Device to be Split Easily to Four HDMI Compatible Monitors or Projectors. Key Features This 1x4HDMI Splitter use a Single HDMI Source, Accessing to Multiple HDMI Sinks . It Can...
1 IN 4 OUT HDMI 4K SPLITTER BOX
It Allows one HDMI Device to be Split Easily to Four HDMI Compatible Monitors or Projectors.
Key Features
- This 1x4HDMI Splitter use a Single HDMI Source, Accessing to Multiple HDMI Sinks .
- It Can also be Placed at the End of a Long HDMI Cable to Regenerate the HDMI Signal.
- The Resolution of this HDMI Splitter can be up to 3840X2160/30HZ.
- Support HDMI 1.4b Version
- Support 3D Video format
- Support High Resolution up to 3840X2160/30HZ
- Support Highest rate of 3.2 G and TMDS clock can be up to 320 MHz
- Support 8/10/12 bit Deep Color
- (When the Resolution is 4K, Input up to 12 Meters, Output Up to 15 Meters.)
- Support one Single HDMI Source
- Accessing to Multiple HDMI Sinks, the Source can be DVD Player, A/V Receiver, set Top Box and etc.
- 5V/2A power adapter

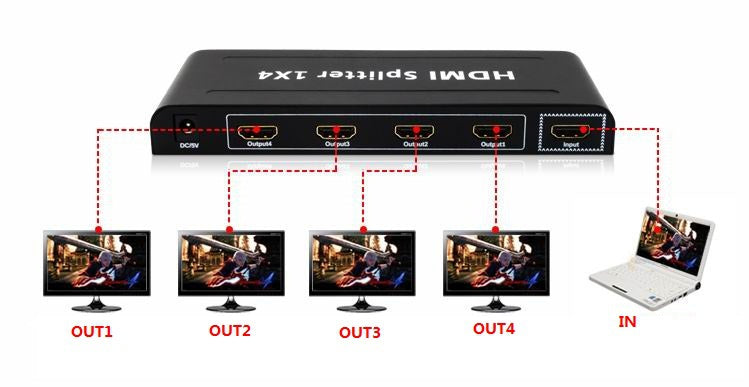

- Connect the HD Source to the Splitter Input with one HDMI Cable
- Connect the Splitter Output to the Displays with 4 HDMI Cables
What's in the Box
- HDMI Splitter
- Power Adapter
- User Manual
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer Part Number | 1IN4OUTHDMI |
| Support AWG26 HDMI Standard Cable | Input up to 15 Meters, Output up to 25 Meters. |
| HDMI Version | HDMI 1.4b |
| HDMI Resolution | up to 3840 x2160/30Hz |
| Support Video Format | 8/10/12 bit deep color |
| Support Audio Format | DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD |
| Max BandWidth | 320 MHz |
| Max Baud Rate | 3.2Gbps |
| Input Cable Distance | (1080p Resolution) =15m,(4K Resolution)=12m AWG26 HDMI Standard Cable |
| Output Cable Distance | (1080p Resolution) =25m,(4K Resolution)=15m AWG26 HDMI Standard Cable |
| Max Working Current | 500mA |
| Input AC | (50HZ, 60HZ) 100V-240V |
| Output | DC5V/2A |
| Operating Temperature Range | (-15 to +55?) |
| Dimension (L x W x H0 | 178x66x20 (mm) |
| Weight | 220g |
